FRU KIT, CORO 170 SERIES, COROLITE SENSOR BOARD, ROHS
| 2085610-008 | |
| 15231A | |
| Maternal Infant Care | |
| Corometrics 170 | |
| GE HealthCare | 되사기 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- Field Replaceble Unit (FRU) Coroite Sensor Board
- High Quality Components
- Easy to Install Connector
- Reilable Operation
제품 개요

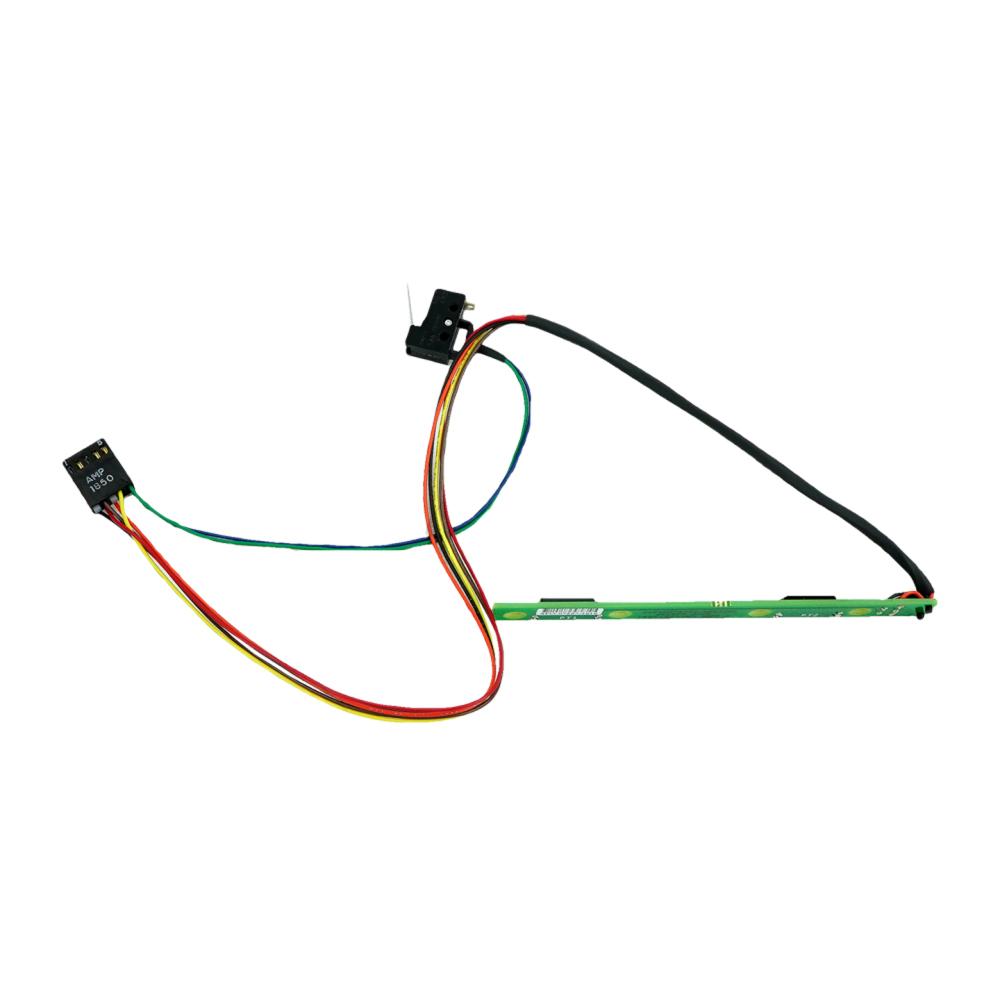

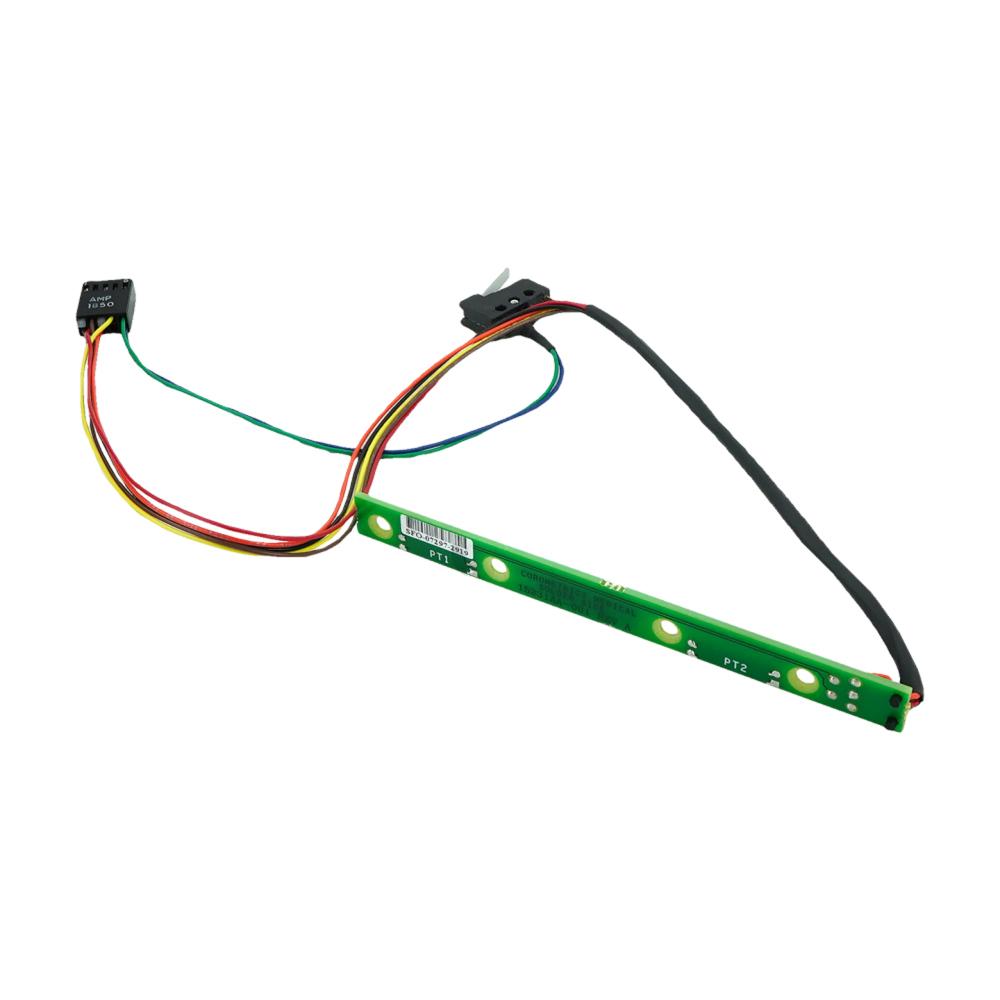

This Corolite Sensor Board is used in the GE's Corometrics 170 Series Fetal Monitor Systems which is used to monitor the heart rate of the fetus in case it is higher or lower than the preset normal range and gives alarm in the form of both audible and visual alerts. The corolite board includes 2x Reflective type Photomicrosensors mounted on a high quality board. The board comes with a 10 Position, 2 row recepatcle connector which establishes connection with the board using five 26 AWG stranded wires. The assembly also has a miniature SPDT, roller actuated switch that comes with a chassis mounting provision and connected to the 2 positions of the connector. For enhanced saftey and wire management, the wires of this assembly has reinforced heat shrink insulation near the board end which assures reliable operation, efficient functioning and long service life. The board comes with sufficiently long wires that offers easy installations and trouble free routing inside the Corometric System's Casing during replacement. This Product will be shipped with all required labels and packed inside a suitable packaging to provide adequate protection during transit.
추가 기능
- Compact Design
- Easy to Mount Miniature Roller Actuated Switch
- Reinforced Insulation with Heat Shrink
- RoHS Compliant
- GSPO
동등 품목:
아래는 동등한 부품에 대한 자세한 정보입니다. 하이퍼 링크가없는 부품은 참조 용으로 만 나열되며 온라인으로 구입할 수 없습니다.
| 동등 품목 | 제품 세부 사항 |
|---|---|
| 15231A | Assembly Printed Circuit Board Corolite Sensor Board |
