BATTERY 3V LITHIUM PC MT DISK
| 413191-001 | |
| 92916717 | |
| Patient Monitoring | |
| Solar Modules | |
| GE HealthCare | 되사기 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- Non-rechargeable 3V 950mAh Lithium (Li) coin cell battery
- Two pin horizontally oriented design
- Suitable for wave-soldering
- Suitable for mounting on Printed circuit Board (PCB)
제품 개요

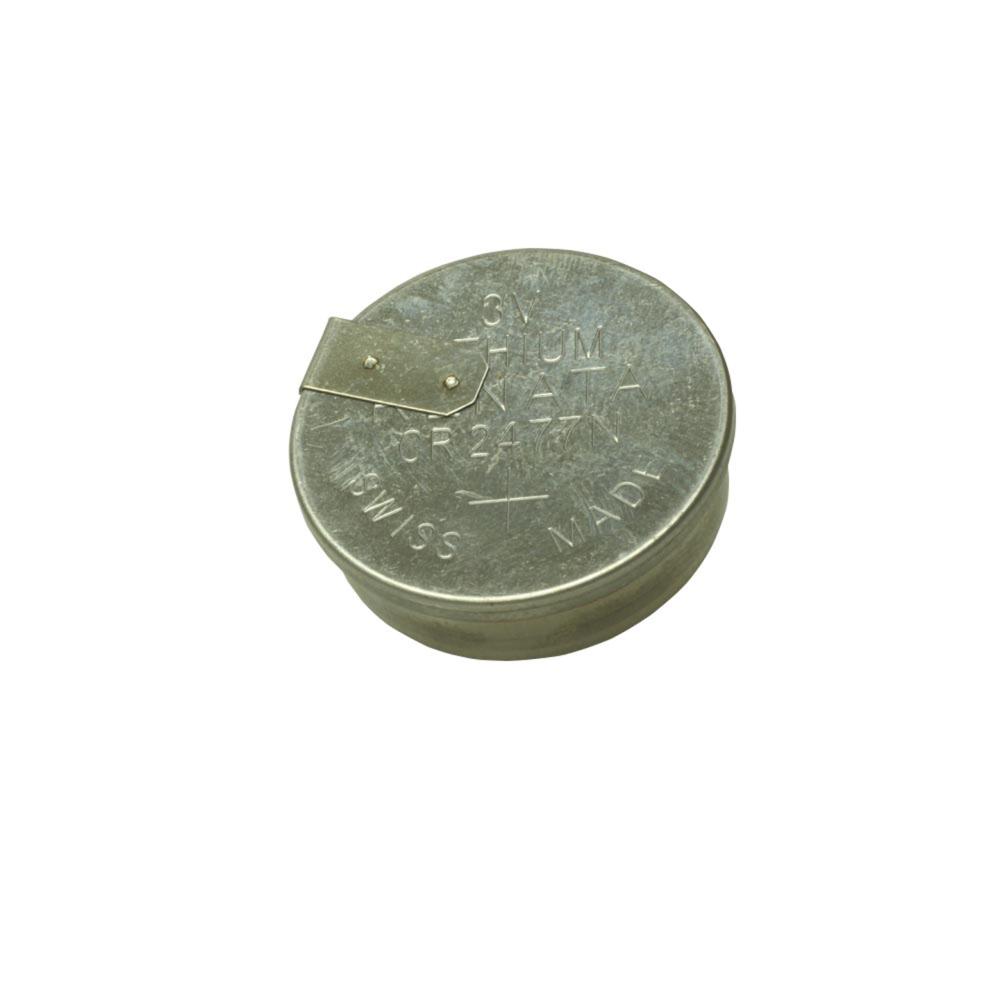

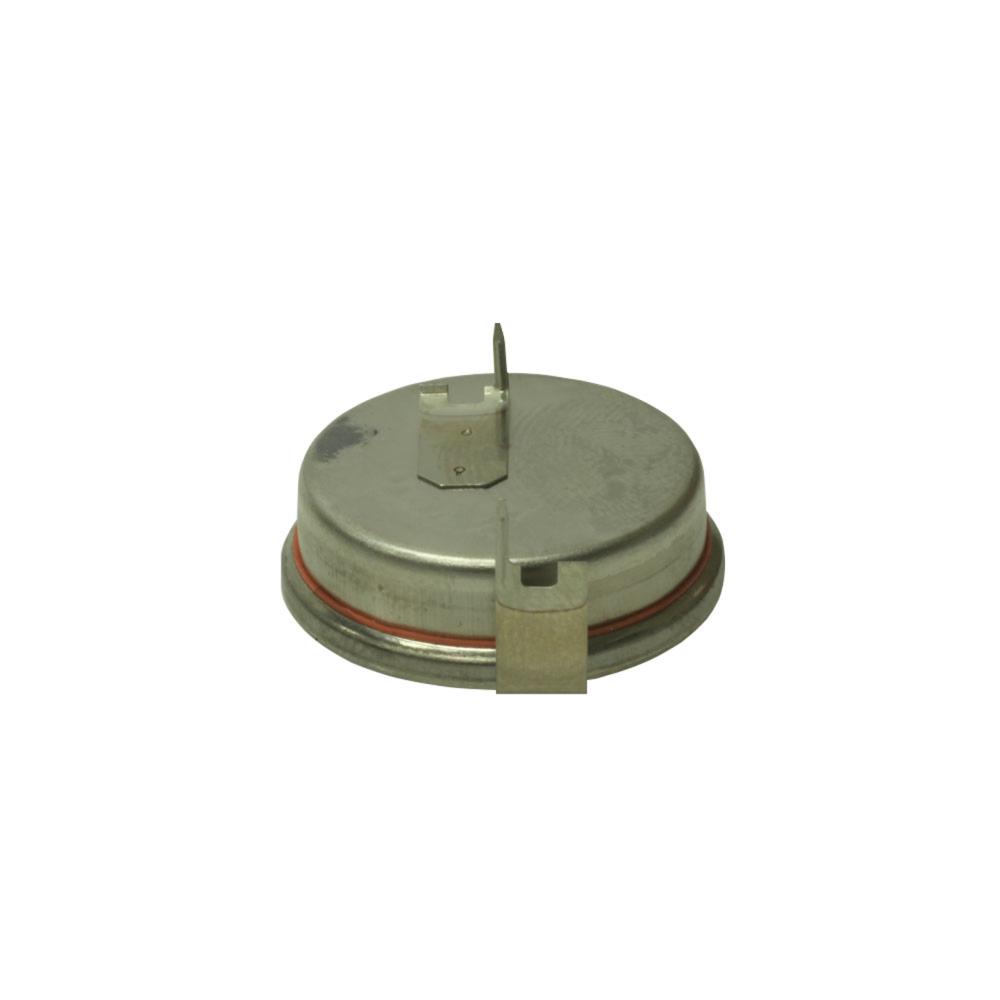

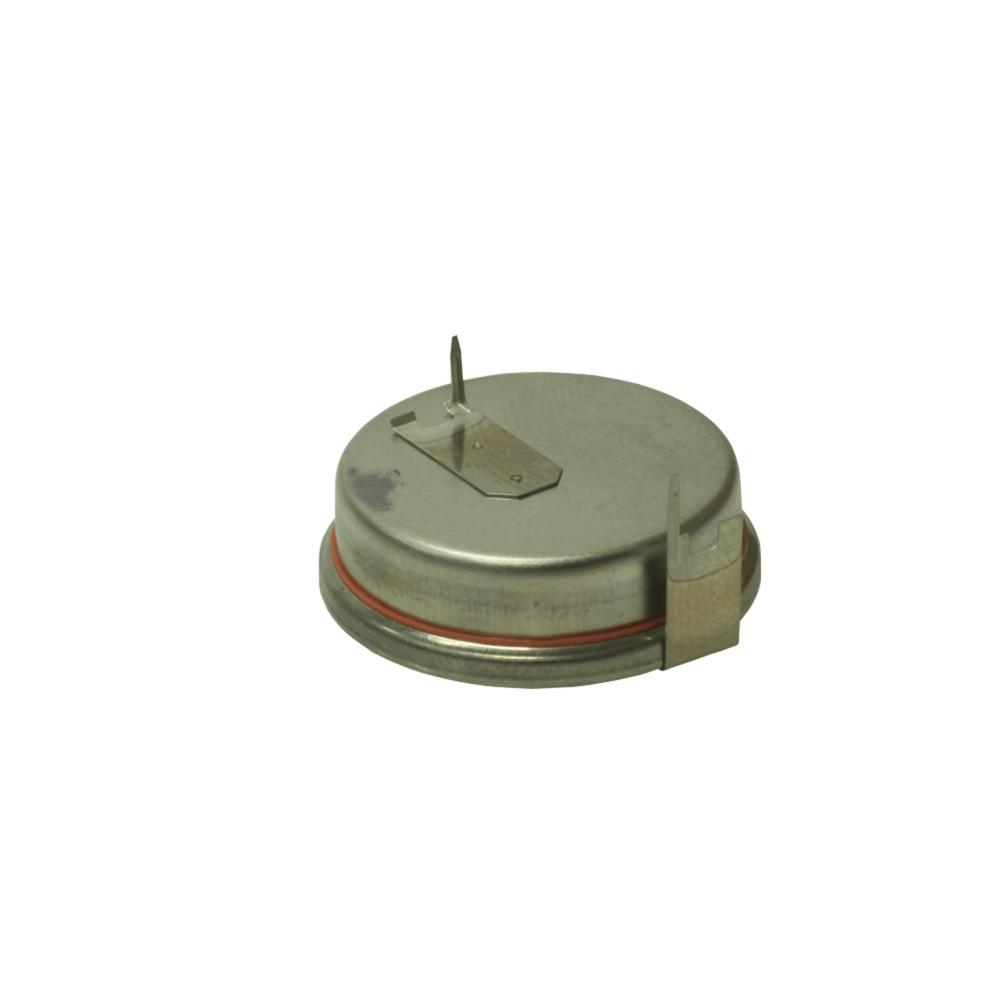

The Battery 3V Lithium Computer (PC) Mount Disk is a non-rechargeable two pin horizontally oriented lithium battery that is a specially designed part, for use in TRAM® multi parameter modules and other medical equipment as applicable. The assembly disk is designed to mount vertically on Printed Circuit Board (PCB). The battery is provided with a disconnect jumper which allows it to be removed from the circuit for calibration and testing. The battery's low self-discharge and maintenance free characteristics makes it well suited for many medical applications. This comes as a part of XV Innova IGS 630, MS Unity Network ID, MS TRAMRAC, MS TRAM MODULE SpO₂, Solar modules, PDS-Servers, Legacy Remote Viewers, Bedside connectivity, MS Solar 8000 and Modular systems.
추가 기능
- Durable compact and sturdy
- Low self-discharge
- Long life low internal resistance and maintenance free
- Free from lead (Pb)
- Operating temperature ranges from -40° C to 85° C
- RoHS REACH compliant
- GSPO
동등 품목:
아래는 동등한 부품에 대한 자세한 정보입니다. 하이퍼 링크가없는 부품은 참조 용으로 만 나열되며 온라인으로 구입할 수 없습니다.
| 동등 품목 | 제품 세부 사항 |
|---|---|
| 92916717 | BTRY PRI LITHIUM 3V/0.255AH |
