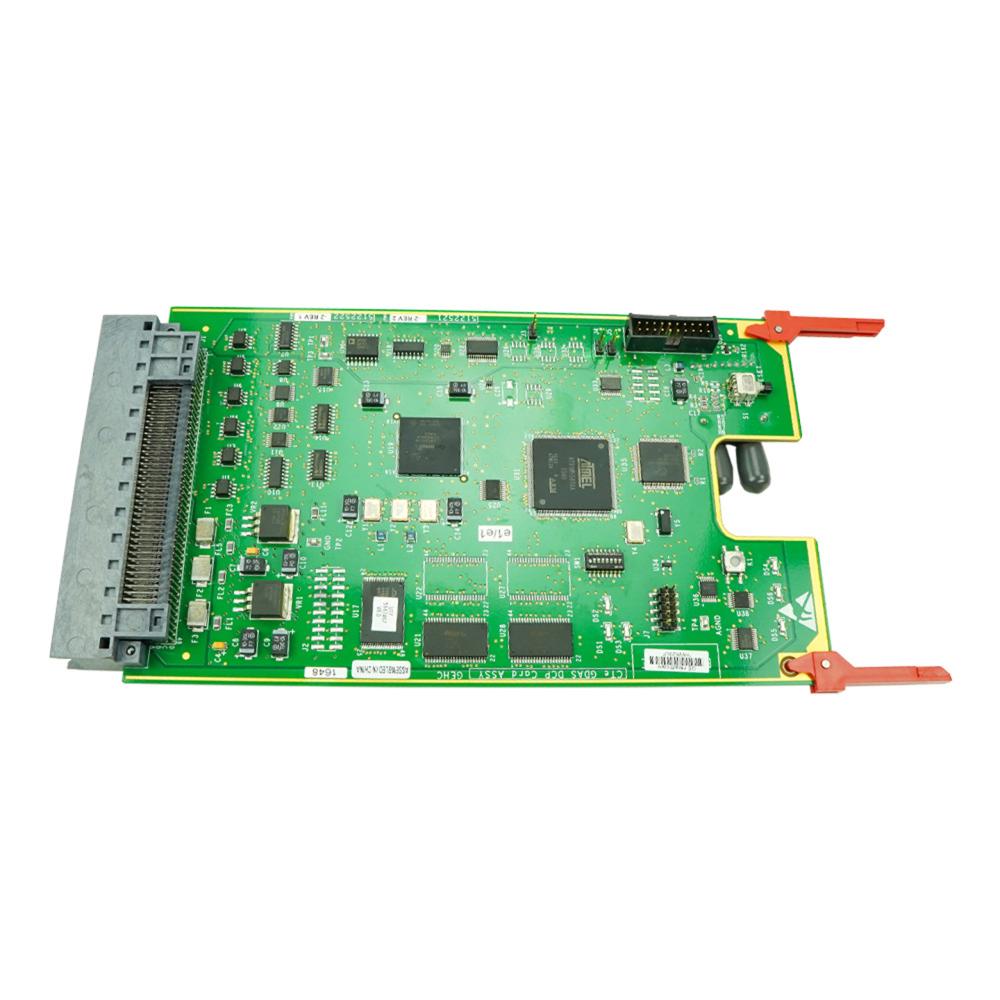

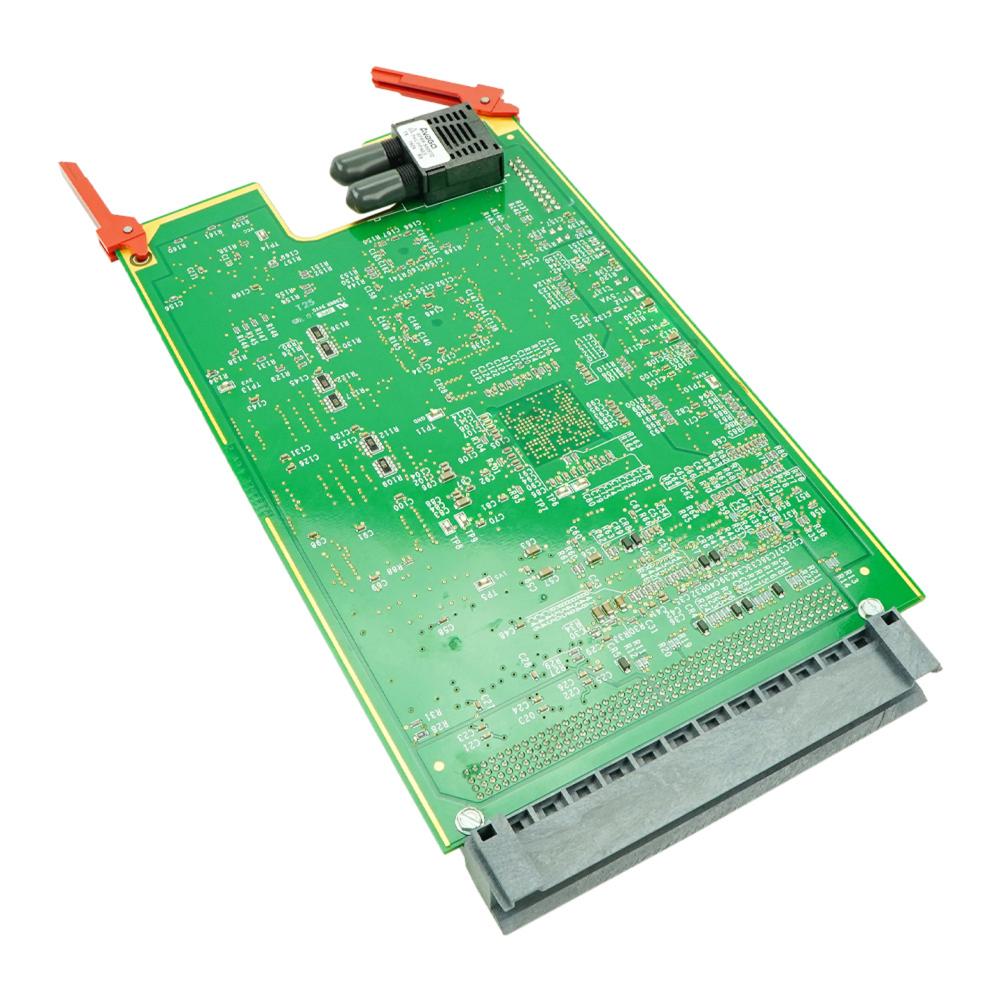

RoHS CTe GDAS DCP Card ASSY
| 5122521-2 | |
| 5122521 | |
| Computed Tomography (CT) | |
| Brivo CT315 | |
| GE HealthCare | 되사기 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- Field Replaceable Unit (FRU)
- In System Programming (ISP) function
- Interfaces On-Gantry Processor (OGP) Board for Rx reception and scan completion via RS422
- Monitors DAS subsystem for various faults
제품 개요
The GDAS DCP is the main control board for the CT/e, 1/2 -Slice GDAS (Global Data Acquisition System). It packages all the converter card data into a single high-speed serial data stream and sends it to Operator Console (OC), compatible with the receive function on the DASIFN at 95/110Mbps slip-ring communication. DCP communicates with OGP to get scan commands, status and error log information. It sends commands to converter cards through CAN protocol. Also it provides an X-Ray beam tracking in dual slice system to ensure the right dose for A slice and B slice on the detector. This board is made up of FR-4 Glass fiber, a composite material that consists of glass fabric, electrical grade epoxy resin. The DCP card is mounted on CT Gantry DAS left backplane PWA, with chassis box assembly cover, and peer with GDAS converter card. This board can be used with Brivo 315 and Brivo 325 systems.
추가 기능
- Beam tracking function for 2 slice system
- RoHS Compliant
- GSPO
동등 품목:
아래는 동등한 부품에 대한 자세한 정보입니다. 하이퍼 링크가없는 부품은 참조 용으로 만 나열되며 온라인으로 구입할 수 없습니다.
| 동등 품목 | 제품 세부 사항 |
|---|---|
| 5122521 | 5122521 |
