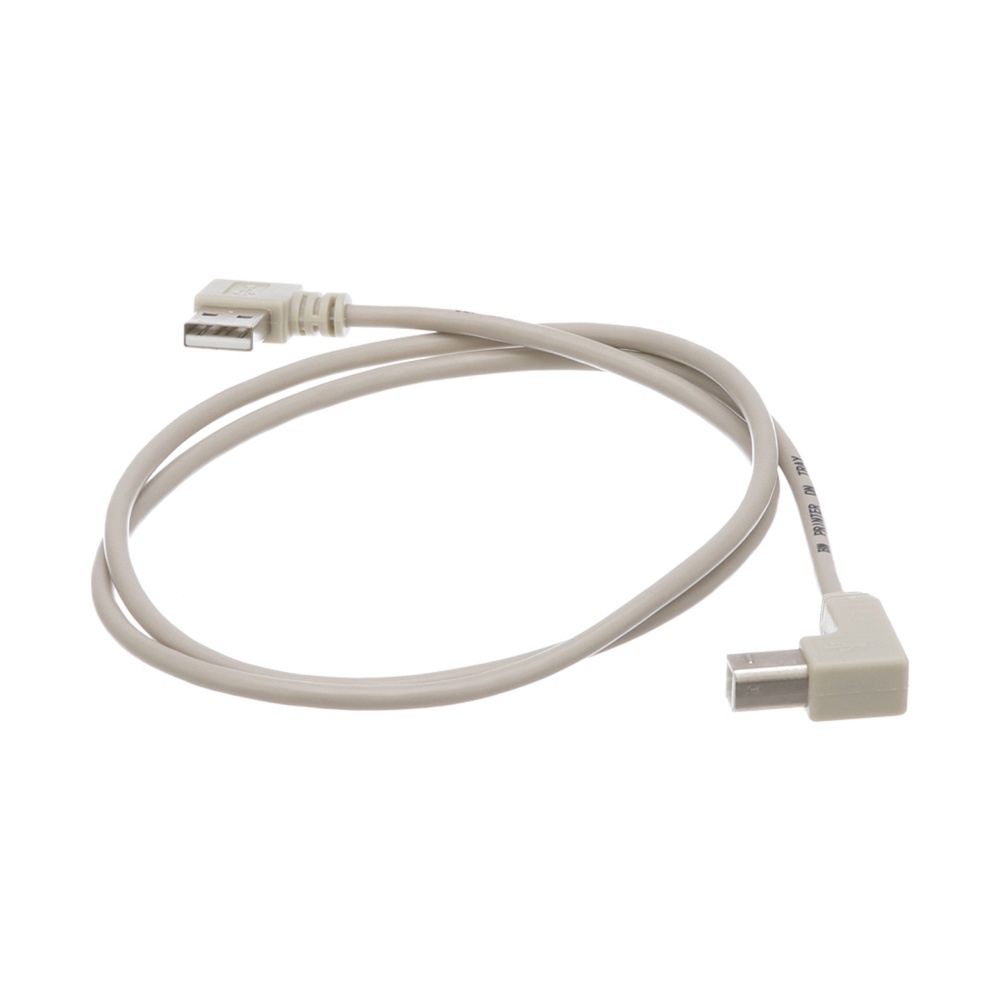

CABLE - USB, BW PRINTER ON TRAY
| 5194492-10 | |
| Ultrasound | |
| LOGIQ E9 | |
| LOGIQ E9 | |
| GE HealthCare | 되사기 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- Copper Braid Shielding
- Good EMI/RFI Shielding
- Easy To Connect Connectors
- UL94V-0 Poly-Vinyl Chloride Jacket
제품 개요
This USB cable is used to interface the Back End Processor (BEP) to BW Printer of GE's LOGIQ E9 Ultrasound Systems. This cable assembly comprises of a 4 position, type A, 90 degree USB plug at the BEP connecting end and a 4 position, type B, 90 degree USB Plug at the printer end, connected using tinned copper conductor cable having one 28 AWG twisted pair (for data) and two 26 AWG (for power). Twisted pair conductors avoids interference of data signals and offers maximum data transfer rate. The connectors are protected with overmolding which provides good strain relief, increase the flexibility at the cable exit and insulation at the connector joints. This cable is properly shielded with braid copper foil to provide EMI/RFI shielding and insulated using gray colored poly-vinyl jacket which offers good flexibility, abration resistance, toughness and protects the cable from external interferences. For ease of identification this cable assembly comes with printed informations such as part number, supplier name or ID, country of origin, date of maufacturing.
추가 기능
- Strong and Flexible Cable
- Reliable Operation
- Long Service Life
- RoHS Compliant
- GSPO
