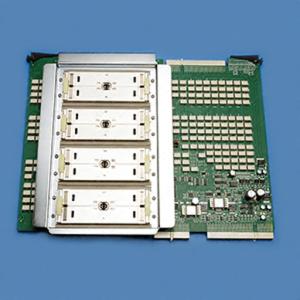

Ichiro R4 Relay Board with 4 DLP ports.
| 5441000 | |
| Ultrasound | |
| LOGIQ E9 | |
| LOGIQ E9 | |
| GE HealthCare | 되사기 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- Field Replaceable Unit (FRU)
- With 4 DLP Ports
- Fuse Protected Circuit
- Flamability Rating of 94V-0
제품 개요
This Relay Board is designed to route transducer channels between the active probe and active Transmitter or Receiver modules. This Relay Board is located in the Card Rack near the front of the scanner, and next to the probe ports. It contains four DLP probe connectors, three connector support probes with 192 channels and one connector is designed to support probes with 256 channels. It also includes 288 Relays that switch connections between the active probe connectors. All signals to the Doppler probe are routed via the backplane and cables to the Doppler probe connector which has has two XD channels. The board comes with 2 auto recover and a fast action fuse for circuit protection. This Field Replaceable Unit (FRU) Relay board can be used with Logiq E9 Ultrasound Systems.
추가 기능
- Compact Size
- Reliable performance
- GSPO
