Cable Assy - Locust to Thorax Column Bulkhead
| 5557043 | |
| X-Ray | |
| Optima XR200 | |
| GE HealthCare | 되사기 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- RoHS Complaint
- Easy to fix
- Compact and lightweight
- Easy to connect and disconnect
제품 개요

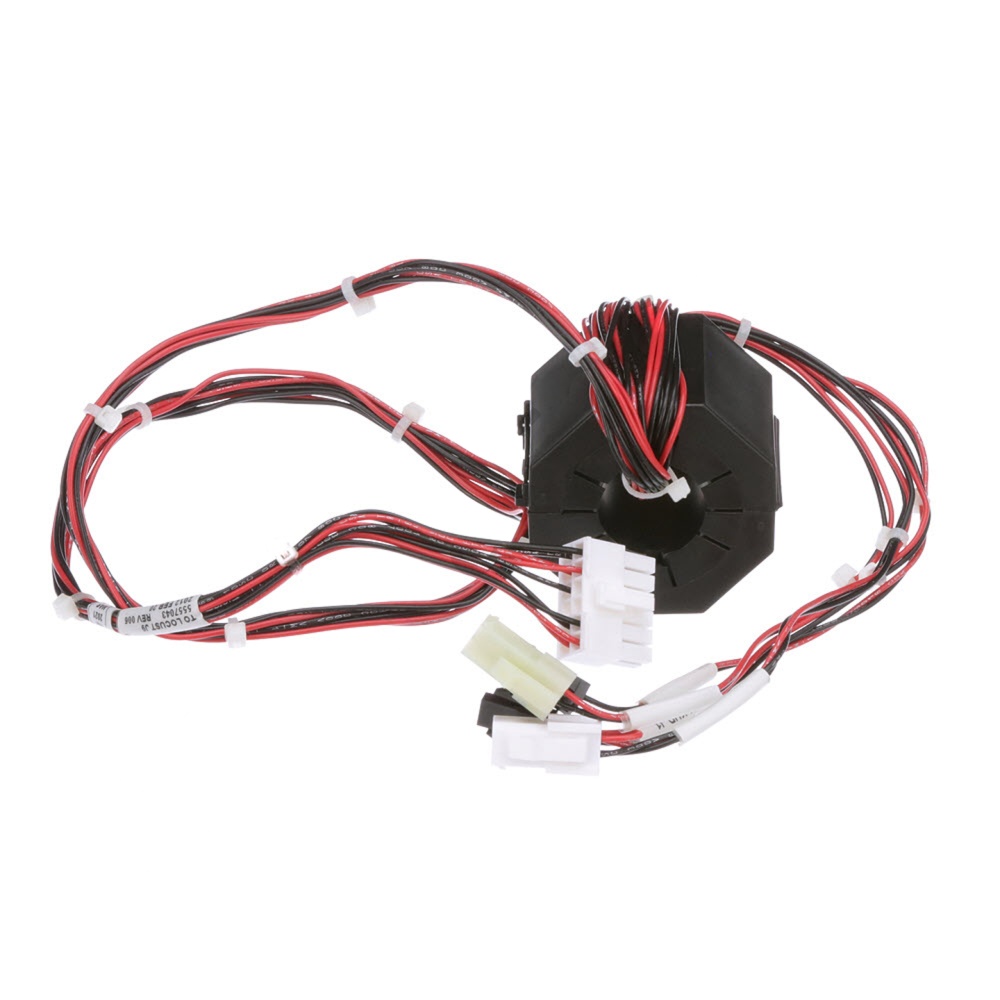

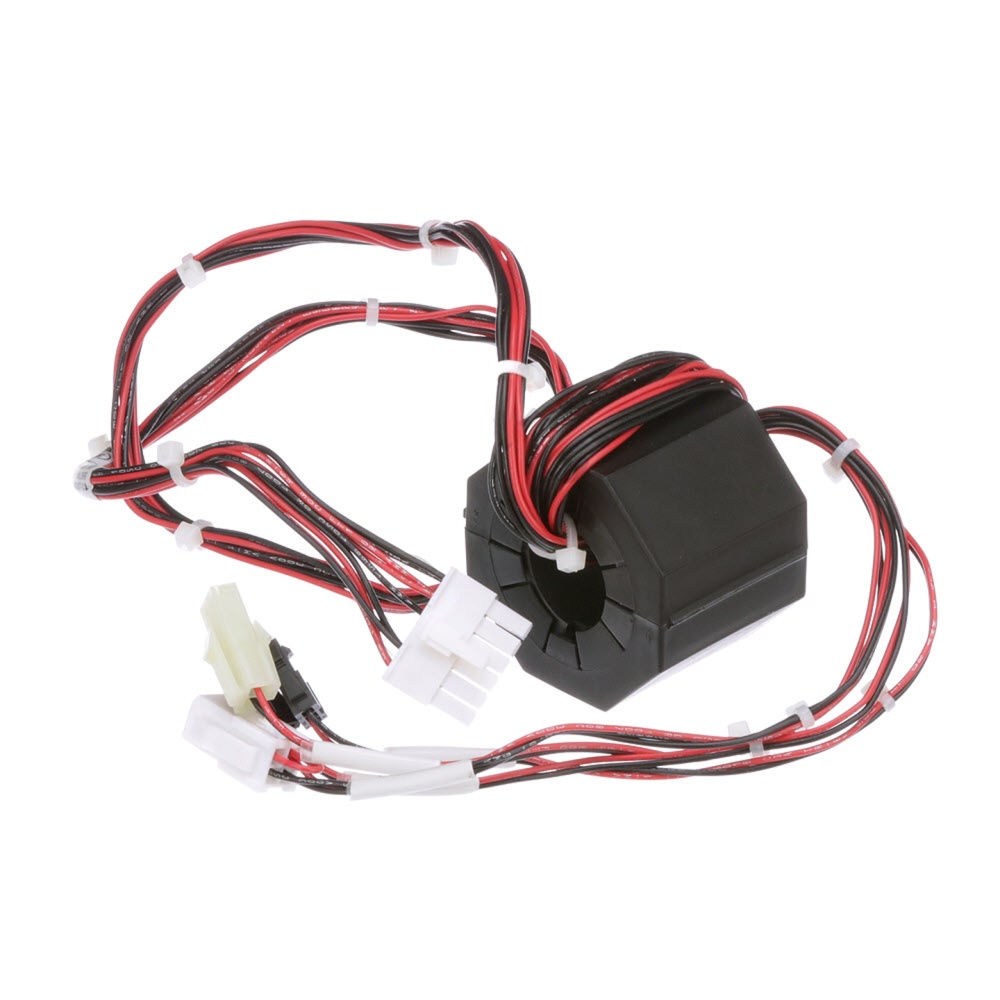

The Cable Assembly - Locust to Thorax Column Bulkhead is a specially designed cable assembly which includes 9 wires of size 24 AWG conductor, a 12 positions Mini-Fit plug with 9 socket contacts at one side. The cable assembly is splitted into four connectors on the other side having a 2 positions receptacle with 2 male pins, a 4 positions Mini-Fit receptacle with 4 male pins, a 2 positions Micro-Fit receptacle with 2 male pins and a 3 positions Micro-Fit receptacle with 2 male pins. The cable comes with labels for easy identifications of the correct side during installation. The cable insulation is made of high quality Poly-Vinyl Chloride (PVC) with good chemical resistance and high strength which makes it well suited for many medical applications. The cable assembly offers outstanding flexibility for easier handling. The products superior materials quality offers reliable operation, efficient functioning and longer life span.
추가 기능
- Very good conductivity
- Reliable performance
- Good Insulation
- Labeled for easy identification
- GSPO
